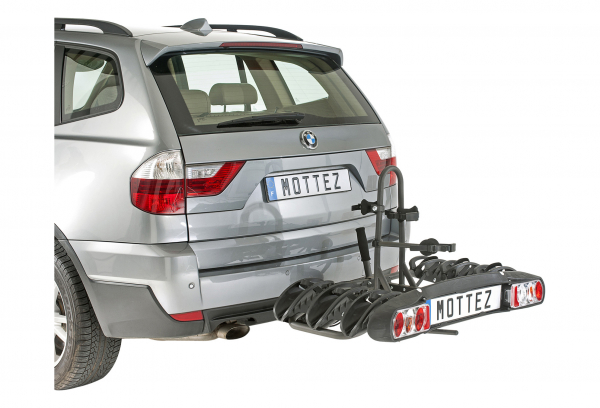

MOTTEZ Bike Towball Carrier APOLLON 3

Installation of platform bike carrier is very simple thanks to the clunk click system. Tightening handle ensures tension adjustment once and for all !

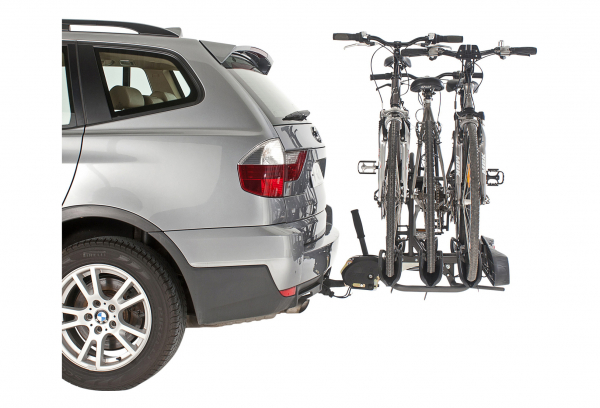

Bikes are installed on rails and held by frame holders. To guarantee a maximum security, they are fixed to frame holders and rails by short straps.
Light board socket with 7 pins.

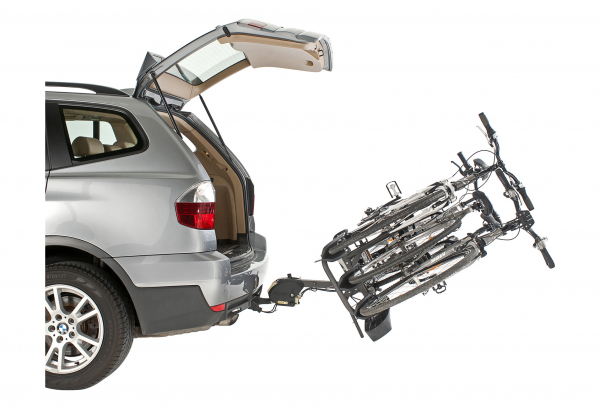

This towball platform carrier is a tilting model which allows access to boot on 80% of vehicles. On minivans, station wagon and leisure utility vehicles, the boot is often inaccessible because of the big dimension of the tailgate which bumps into the bike carrier handle.
Optimal quality compliant with French Standard XP R 18-904-44 ( Report N° K090115 D/5 of 10 March 2010)
Universal fitting with tools.
This rack has 2 steel folding support arms which allow versatile use of your platform : luggage, parcels, etc…
Rails are made of aluminium.
Horizontal adjustment of the platform up to ± 3°
It is possible to lock the towball bike carrier with a padlock.
An anti theft cable with padlock is also supplied to protect your bikes.
Central beam is coated with black rust preventive heat-hardened epoxy powder paint.
In order to fix carrier on towball, you need a minimum distance of 50 mm between the towball and the bumper.
To install the product on bolt flange towball, there must be a distance between the tow ball centre and the bolts equal or superior to 30 mm.
To allow boot opening, the distance between the top of the towball and the loading threshold must be equal or superior to 120 mm.
